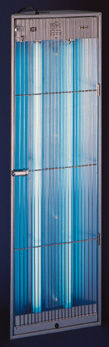

Gilbert® 601T "The Don"
Printer Friendly 601T Cut Sheet PDF

Excellent effectiveness. The Don™ features versatile corner or vertical flat wall-mounting and a wide angle of attraction.
Mount low, top of trap below 5 ft.

Features two, superior, Sylvania F40/350BL/ECO (40 watt) Insect attractant lamps. Lamp replacement info.

Nickel-chrome plated guard door swings open for easy access to grid, reflective surfaces, and lamps for periodic cleaning and lamp replacement.

Catch tray is secure; yet, easily removed for emptying.

Frame and interior structure made of aluminized steel (lifetime auto muffler material). Keyholes on back for corner or wall-mount installation.

Six foot, 3-wire grounded power cord. Standard 115v/60hz. Current draw: .84 amp., 93 watts (RMS Meter).

Interlock switch automatically shuts off trap when guard door is opened.

Dimensions: 54 3/16" x 16" x 4 3/4"
Weight: 32 lbs., Ship Wt: 41 lbs.
FIVE YEAR WARRANTY (Excluding lamps only)!

601T Mounting Templates:
Keyhole slots on back of unit for flat-wall mounting
are 5.250" apart. Click on image below to download full size mounting template in PDF format.

Keyhole slots on back of unit for corner mounting
should be marked as shown below. Click on image below to download full size mounting template in PDF format.


Made in the USA of US and imported parts.
